12 AWG 2 Conductor 19 × 25 Conductor Speaker Cable with UL CMR Rated PVC

HANGZHOU ZION COMMUNICATION CO.,LTD
Contact Now
    Buy cheap 12 AWG 2 Conductor 19 × 25 Conductor Speaker Cable with UL CMR Rated PVC from wholesalers

    Buy cheap 12 AWG 2 Conductor 19 × 25 Conductor Speaker Cable with UL CMR Rated PVC from wholesalers
    • Buy cheap 12 AWG 2 Conductor 19 × 25 Conductor Speaker Cable with UL CMR Rated PVC from wholesalers

    12 AWG 2 Conductor 19 × 25 Conductor Speaker Cable with UL CMR Rated PVC

    Ask Lasest Price
    Brand Name : KINGTONE OR OEM
    Certification : CE, RoHS, VDE, UL, CUL, LPCB
    Model Number : 12 AWG 2 Cores Audio Speaker Cable
    Delivery Time : Normally 15 days
    Payment Terms : T/T, L/C
    Supply Ability : 50*20’GP / Month
    • Product Details
    • Company Profile

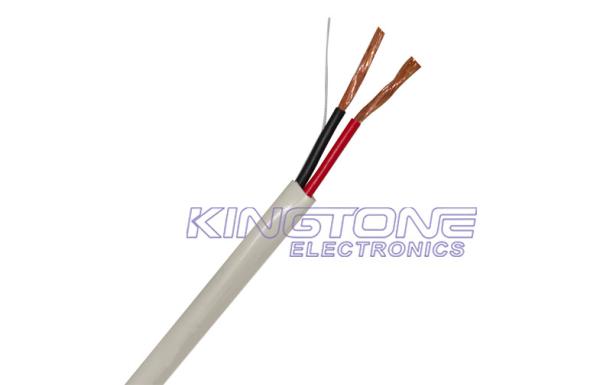

    12 AWG 2 Conductor 19 × 25 Conductor Speaker Cable with UL CMR Rated PVC


    12 AWG 2 Conductor 19 × 25 Conductor Speaker Cable with UL CMR Rated PVC


    Quick Detail:


    • Audio Speaker Cable
    • 12 AWG (19×25) Conductor
    • 2 Cores Stranded Conductor
    • Bare Copper Conductor
    • PVC, UL CMR Rated
    • 500FT, 1000FT, Plastic / Wooden Spool, Carton

    Description:


    Speaker wire is used to make the electrical connection between loudspeakers and audio amplifiers.

    Modern speaker wire consists of two or more electrical conductors individually insulated by plastic

    (such as PVC, PE or Teflon) or, less commonly, rubber. The two wires are electrically identical,

    but are marked to identify the correct audio signal polarity. Most commonly, speaker wire

    comes in the form of zip cord.



    The effect of speaker wire upon the signal it carries has been a much-debated topic in the

    audiophile and high fidelity worlds. The accuracy of many advertising claims on these points

    has been disputed by expert engineers who emphasize that simple electrical resistance is

    by far the most important characteristic of speaker wire.


    KINGTONE using best raw material and best worker to produce Speaker wire to meet high

    performance in practical application.Because of good managing methods, KINGTONE’S

    price of Speaker wire is not high although our quality is really high.


    KT1601 Audio Cable 12AWG 2C Stranded Bare Copper PVC CMR (UL) Speaker Cable
    Construction Parameters:
    Conductor Stranded12AWG (19×25)Bare Copper
    No. of Conductor2
    Nom. Insulation Thickness0.010"/0.25mmPVC CMR
    Nom. Jacket Thickness0.017"/0.43mmPVC CMR
    Overall Cable Diameter0.260"/6.60mmPVC CMR
    Approximate Cable Weight53.6 Lbs/1000ft
    Flame RatingUL 1666 Riser Flame Test
    Electrical Characteristics:
    Nom. D.C. R. Resistance @ 20°:1.7 ohms per 1000ft
    Temperature Rating-20° C to 60° C
    Operating Voltage150 V RMS Max
    Capacitance Between
    Conductors@1KHz
    33.5 pF/ft Nom.
    Insulation ColorsBlack, Red
    Jacket ColorsGrey, Black, Brown, White
    RoHSYES
    Order Informations:
    Marking

    KINGTONE KT1601 AUDIO CABLE 12AWG 2C Stranded Bare

    Copper PVC
    CMR (UL) Speaker Cable XXX M/FT

    Package500FT/Pull Box, 1000FT/Wooden Spool, Pallet
    Delivery timeNormally 15 days after received the deposit.
