RG59 ST CCTV Coaxial Cable 0.64mm BC Solid PE 95% CCA Braiding with PVC Jacket

HANGZHOU ZION COMMUNICATION CO.,LTD
Contact Now
    Buy cheap RG59 ST CCTV Coaxial Cable 0.64mm BC Solid PE 95% CCA Braiding with PVC Jacket from wholesalers

    Buy cheap RG59 ST CCTV Coaxial Cable 0.64mm BC Solid PE 95% CCA Braiding with PVC Jacket from wholesalers
    • Buy cheap RG59 ST CCTV Coaxial Cable 0.64mm BC Solid PE 95% CCA Braiding with PVC Jacket from wholesalers

    RG59 ST CCTV Coaxial Cable 0.64mm BC Solid PE 95% CCA Braiding with PVC Jacket

    Ask Lasest Price
    Brand Name : KINGTONE OR OEM
    Certification : ISO, UL, CE, RoHS
    Model Number : RG59 ST CCTV Coaxial Cable
    Delivery Time : Normally 15 days
    Payment Terms : T/T, L/C
    Supply Ability : 50*20’GP / Month
    • Product Details
    • Company Profile

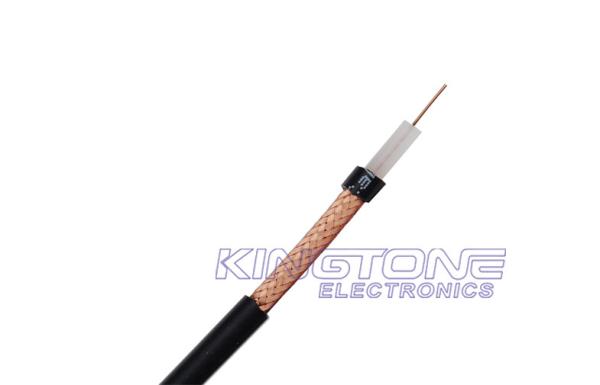

    RG59 ST CCTV Coaxial Cable 0.64mm BC Solid PE 95% CCA Braiding with PVC Jacket


    RG59 ST CCTV Coaxial Cable 0.64mm BC Solid PE 95% CCA Braiding with PVC Jacket


    Quick Detail:


    • RG59 ST CCTV Coaxial Cable
    • 0.64mm BC Conductor
    • 95% CCA Braiding
    • Solid PE Insulation
    • 75 Ohms CCTV Cable
    • PVC, RoHS Compliant
    • 500FT 1000FT Spool or Pull Box
    • MOQ: 30 KM

    Description:


    KT0709 RG59 ST CCTV Coaxial Cable 0.64mm BC SPE 95% CCA Braiding

    RG-59/U is a specific type of CCTV coaxial cable , RG59/U (Produced by KINGTONE) is perfect

    for any type of surveillance camera installation. RG59/U has a characteristic impedance of 75 ohms.

    KINGTONE using best raw material and best worker to produce RG59/U to meet high performance in

    practical application. RG59/U is packed in 500FT/1000FT plastic/wooden spool, and will be layed on

    pallet to protect the spool and easier carry.Because of good managing methods,

    KINGTONE’S price of RG59/U is not high although our quality is really high.


    Applications:


    Suitable for Signal Transmission

    ■ CCTV

    ■ Local Area Network

    ■ Digital Video

    ■ Monitor / VDT Display

    ■ Security Camera


    Specifications:


    KT0709 RG59 ST CCTV Coaxial Cable 0.64mm BC SPE 95% CCA Braiding
    Construction Parameters:
    Inner Conductor0.64mmBare Copper
    Dielectric3.70±0.05mmSolid PE
    ShieldNom. 4.15mm
    Strand0.12mmCopper Clad Aluminum
    % Coverage95 nom.
    Jacket6.00±0.1mmPVC (Color by your choise)
    Electrical Characteristics:
    Capacitance67±2 pF/m
    Impedance75±3 Ω
    Inner Conductor Resistance54 Ohms/KM at 20℃
    Return lossbetween 5 and 1000MHz> 22.5dB
    Velocity of Propagation0.66
    Sparker Test (VAC)3
    Operating Temp Range (PVC)-20 ℃ to 65℃
    RoHSYES
    Attenuation(20℃):
    Frequency
    (MHZ)
    Max Attenuation
    (dB/100m)
    52.68
    559.56
    18718.24
    21119.51
    35025.64
    45029.39
    55032.76
    75038.92
    86542.30
    100046.17
    Order Informations:
    MarkingKINGTONE KT0709 RG59 0.64BC SPE 95% CCA COAXIAL CABLE
    XXXX FT/M
    Package100M/Plastic Spool, 300M/500M/Wooden Spool, Carton
    Delivery timeNormally 20-25 days after received the deposit.
    More informationsplease contact with us.
