Quick Detail:

2:1 PVC Heat Shrink Tubing

(M23053/2,CL2)

Low -Cost

Economical

Excellent sunlight and ozone resistance

Ecellent oil,moisture,and fungus resistance

Semi-gloss finish ideal for cosmetic appilications

Outstanding flame and chemical resistance

Easily hot stamped for wire ID

Spooled lengths reduce waste

Competitive price with good and stable quality

Quickly and professionally answer for the inquire

Description:

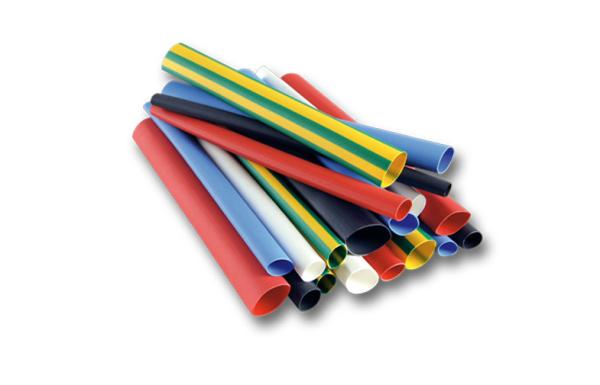

2:1 PVC Heat Shrink Tubing (M23053/2) is a low-cost, economical heat shrink tubing for military, commercial, and industrial cable assemblies. It offers great electrical insulation and has a low shrink temperature. It also resists many chemicals, oils, sunlight, moisture, and fungus. The tubing is very flexible.

Because of good managing methods, KINGTONE’S price of Solar Cable is not high although our quality is really high.

Applications:

Electrical & general purpose bundling

Uses with PVC Cable

Use with heat sensitive substrates

Wire harnesses and cable assemblies

Applications with flame retardant requirements

Automated cutting machines (spools)

M23053/2 Characteristics:

Shrinkage Ratio: 50% (2:1) @ 105ºC

Longitudinal Shrinkage: +/-10% (min.)

Operating Temp Range: -35ºC to +105ºC

Dielectric Strength: 1,083 V/mil

UL Rating: 600V @ 105ºC

Volume Resistivity: 21.5 x 1012 ohm-cm

Specific Gravity: 1.33

Tensile Strength: 2,500 psi (176 kg/cm2)

Ultimate Elongation Non-Irradiated: 300% (min.)

Colors: Black, clear, red and yellow

M23053/2 Chemical Properties:

Corrosive Effect: Meets requirements of MIL-I-631

Fungus Resistance: No growth (MIL-I-7444)

Water Absorption: 0 to 1% max 24 hours @ 25ºC

M23053/2 Features:

Economical

Excellent sunlight and ozone resistance

Excellent oil, moisture, and fungus resistance

Semi-gloss finish ideal for cosmetic applications

Outstanding flame and chemical resistance

Easily hot stamped for wire ID

Spooled lengths reduce waste

Other Benefits:

Low Shrink Temperature (100ºC)

30% Stronger than Standard Polyolefin

Low Water Absorption and UV Resistant

Multiple Package Availability

Customization Services for 2:1 PVC Heat Shrink Tubing include:

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A,Incoming material inspected by QC.

B,Manufacturing Process Control

A: Manufacturing procedure

B: Workers trained daily/weekly/monthly

C: Work instructions manual at each work station

D:5S system implemented

E: Machine maintenance procedure

C, Quality Control and Final Inspection

The QC staff will check the material, process product and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and KINGTONE

3, We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery

HANGZHOU ZION COMMUNICATION CO.,LTD is a professional manufacturer and exporter of CCTV Coaxial Cable, CATV Coaxial Cable, CAT5E & CAT6 Network Cable, Fire Resistant Cable, Coaxial Cable Connectors.

We carry an extensive variety of electronic products for all the major industries including government, military, automotive and telecommunications.

From its humble beginnings in a single workshop in 1999, now it has blossomed into one of the largest independent manufacturer and exporter in China. We have a study and design label,a professional team of engineers and skilled workers, also with the advanced machines and modern factories which can provide for our customers with outstanding quality, service, and pricing.Until now, we have three factories in ZheJiang Province to produce different cables, also we invest into 1 connector factory and 1 cable accessories factory and 1 trading company.

HANGZHOU ZION COMMUNICATION CO.,LTD's management and international sales teams are committed to our customers' utmost satisfaction. Our experienced team of wire and cable experts strives to service every inquiry, quote, and order quickly and efficiently, meeting and often exceeding customers' expectations.
