HANGZHOU ZION COMMUNICATION CO.,LTD Professional Manufacturer of Coaxial Cable, Lan Cable, Fire Resistant Cable and Cable Accessories!
12 Years
| Ask Lasest Price | |
| Brand Name : | ZION OR OEM |
| Certification : | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number : | PH30 Fire Resistant Cable |
| Delivery Time : | Normally 25 days |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 500KM / Month |

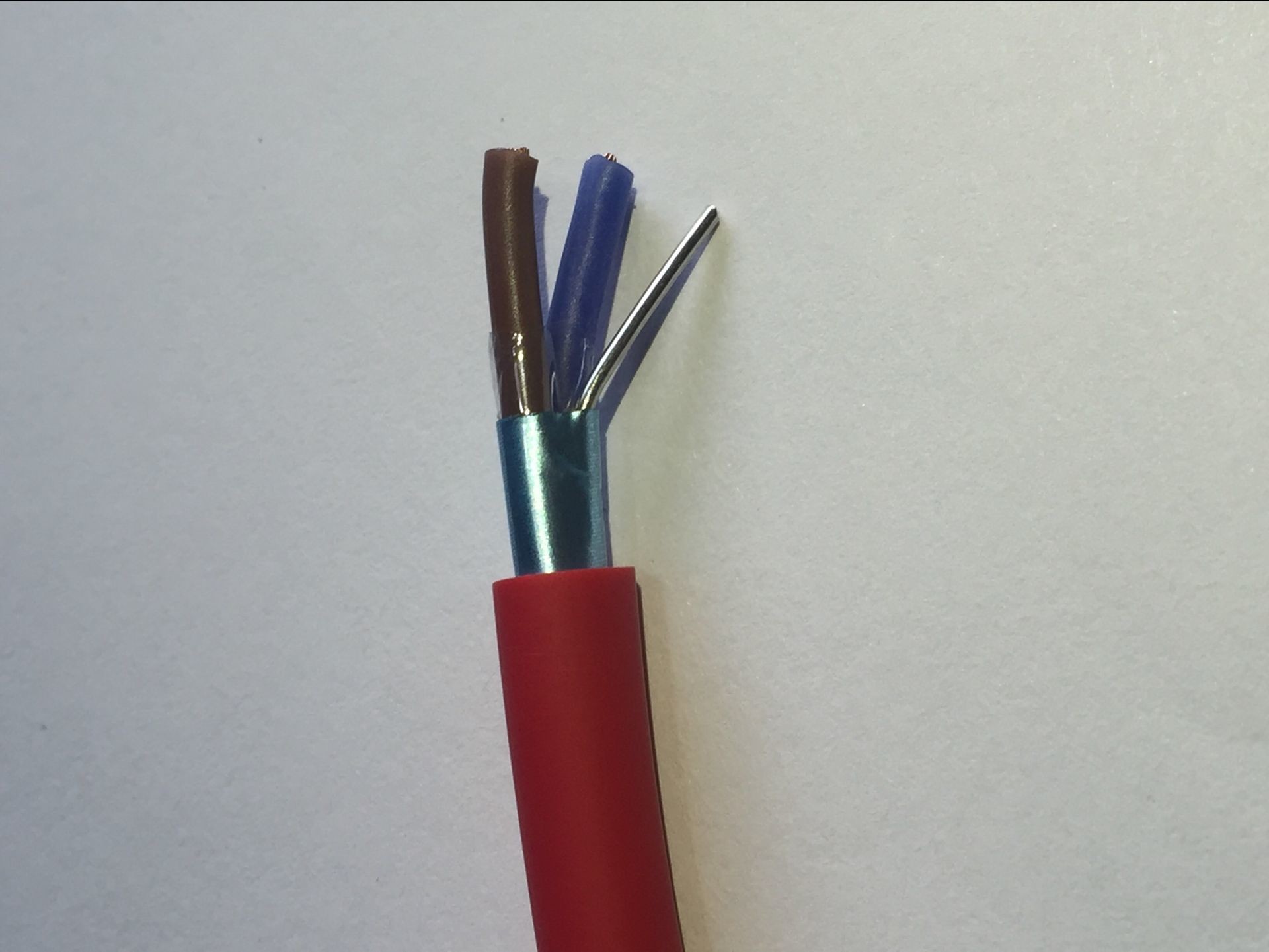

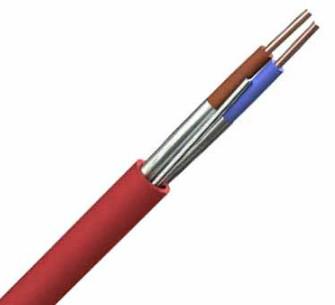

PH30 Fire Resistant Cable 1.0mm2 Class 5 Copper Silicone Insulation LSZH Jacket
Quick Detail:
Description:
KT1412 SR 114H Standard PH30 PH60 Fire Resistant Cable with Silicone Rubber LSZH Jacket
is a specific type of fire alarm cable Produced by ZION. These cables are used for
installation in fire systems for connecting fire alarms etc. The cable can be installed
in dry and moist areas as well for fixed open air installation. This cable type with
electrostatic screening (St) protects the transmission circuits against extern-electrical
interferences. And all these cables comply to:
IEC60331-23-2003
IEC60332-3-22-2005
IEC61034-2-2005
EC60754-1-99
IEC60754-2-99
IEC60331-21:1999
BS EN 61034-2:2005
BS 7629-1:2008
BS EN 50267-2-1:1999
ZION using best raw material and best worker to produce KT1412 PH30 PH60 Fire Resistant Cable SR 114H Rubber Insulation FR-LSZH to meet high performance in practical application. KT1412 PH30 PH60 Fire Resistant Cable SR 114H Rubber Insulation FR-LSZH is packed in 500M/Spool, 1Spool/Carton, then will be layed on pallet to protect the spool and easier carry. Because of good managing methods,
ZION’S price of KT1412 PH30 PH60 Fire Resistant Cable SR 114H Rubber Insulation FR-LSZH is not high although our quality is really high.
Applications:
These cables are used for installation in fire systems for connecting fire alarms etc.
The cable can be installed in dry and moist areas as well for fixed open air installation.
This cable type with electrostatic screening (St) protects the transmission circuits
against extern-electrical interferences.
| KT1412 SR 114H Standard Cable PH30 PH60 Fire Resistant Cable Silicone Rubber FR-LSZH Jacket | ||||||
| APPLICATION: | ||||||
| These cables are used for installation in fire systems for
connecting fire alarms etc. The cable can be installed in dry and moist areasas well for fixed open air installation. This cable type with electrostatic screening (St) protects the transmission circuits against externelectrical interferences. | ||||||
| Standards: | ||||||
| All these cables comply to: BS 5839-1:2002 Code of practice for fire system design, installation, commissioning and maintenance. BS 7629-1:2008 Low emission of smoke and corrosive gases BS EN 50200 PH30 PH 60 Temperature: 830 °C Flame and shock for 30/60 minutes. | ||||||
| ELECTRICAL DATA (AT20OC) | ||||||
| Minimum Bend Radius | Min. Insulation resistance | Max.Working Temperature | Test voltage (rms value) | Max. Operating voltage peak value | ||
| MΩ/km | ℃ | V | V | |||
| 8×Diameter | 300 | -40℃～+90℃ | 1000 | 300/500 | ||
| TYPES AND MECHANICAL DATA | ||||||
| Types sqmm (mm2) | Conductor | Insulation | Shielded1/ Drain Wire / Shielded2 | Level of twisting | Jacket Matterial | OD of Jacket (mm) |
| 2×1.0 | BC Class 1,5 | Rubber | PET/AL-Foil | TC | FR-LSZH | 6.50±0.20 |
| 4×1.0 | BC Class 1,5 | Rubber | PET/AL-Foil | TC | FR-LSZH | 7.50±0.20 |
| 2×1.5 | BC Class 1,5 | Rubber | PET/AL-Foil | TC | FR-LSZH | 7.00±0.20 |
| 4×1.5 | BC Class 1,5 | Rubber | PET/AL-Foil | TC | FR-LSZH | 8.10±0.20 |
| 2×2.5 | BC Class 1,5 | Rubber | PET/AL-Foil | TC | FR-LSZH | 8.00±0.20 |
| 4×2.5 | BC Class 1,5 | Rubber | PET/AL-Foil | TC | FR-LSZH | 9.50±0.20 |
| 2×4.0 | BC Class 5 | Rubber | PET/AL-Foil | TC | FR-LSZH | 9.30±0.20 |
| 4×4.0 | BC Class 5 | Rubber | PET/AL-Foil | TC | FR-LSZH | 11.20±0.20 |
| *Notes | Class Types: | Class1: Solid / Class 5: Flexible | ||||
| FR-LSZH: | LSZH thermoplastic material Type LTS3 to BS 7656-6.1 | |||||
| Silicone Rubber: | High performance silicone rubber EI2 to BS EN 50363-1 | |||||
| TECHNICAL DATA | ||||||
| Types sqmm (mm2) | Max.Resistance of Cond.at 20℃ | Current Carrying Capacity(Amperes) | Nominal Capacitance (pF/m) | |||
| Class 1,2 | Class 5 | Clipped Direct | In Conduit | Core | Screen | |
| 1.00 | 18.10 Ω/km | 19.50 Ω/km | 19 | 17 | 100 | 170 |
| 1.50 | 12.10 Ω/km | 13.30 Ω/km | 24 | 22 | 110 | 190 |
| 2.50 | 7.41 Ω/km | 7.98 Ω/km | 33 | 30 | 130 | 220 |
| 4.00 | 4.61 Ω/km | 4.95 Ω/km | 45 | 40 | 160 | 270 |
| Order Informations: | ||||||
| Marking | ZION KT1412 SR 114H Standard Cable PH30 PH60 N*NNmm2 XXX M MMDDYYYY | |||||
| Package | 500M/Wooden Spool, 1Spool/Carton | |||||
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and ZION.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
|
|
