| Brand Name : | ZION OR OEM |
| Certification : | ISO, UL, CE, RoHS |
| Model Number : | RG59 B/U CCTV Coaxial Cable |
| Delivery Time : | Normally 25 days |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 1000KM / Month |

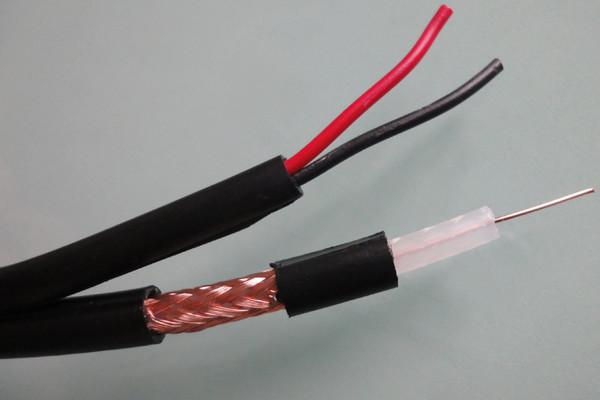

RG59 Siamese Cable 95% BC Braiding + 2 × 0.50 mm2 BC Power for CCTV Camera
Quick Detail:
Description:
RG59 Siamese Cable 95% BC Braiding + 2x0.50mm2 BC Power Siamese Cable
RG59B/U is a specific type of CCTV coaxial cable , RG59B/U (Produced by ZION) is perfect
for any type of surveillance camera installation. RG59B/U has a characteristic impedance of 75 ohms.
ZION using best raw material and best worker to produce RG59B/U to meet high performance in
practical application. RG59B/U is packed in 500FT/1000FT Plastic/Wooden Spool, and will be layed on
pallet to protect the spool and easier carry.Because of good managing methods,
ZION’S price of RG59B/U is not high although our quality is really high.
Applications:
Suitable for signal transmission
■ CCTV
■ Local Area Network
■ Digital video
■ Monitor/VDT display
■ Security Camera
Specifications:
| RG59 Siamese Cable 95% Bare Copper Braiding + 2x0.50mm2 Bare Copper Power | ||
| Construction Parameters: | ||
| Inner Conductor | 0.58mm/23AWG | Bare Copper |
| Dielectric | 3.66±0.05mm | Solid PE |
| Shield | Nom. 4.20mm | |
| Strand | 0.12mm/34AWG | Bare Copper |
| % Coverage | 95 nom. | |
| Jacket | 6.00±0.1mm | PVC (Color by your choise) |
| Power Wire Conductor | 16×0.20mm | Bare Copper |
| Power wire Diameter of insulation | 1.90mm | PVC |
| Power Wire Color Code | Red,Black | |
| Jacket | 5.05±0.1mm | PVC (Color by your choise) |
| * 1 Pair of wire twisted | ||
| Application | For Use in Intermediate CCTV | Run Lengths |
| Limited Length | Typical run length up to | 700 feet |
| Electrical Characteristics: | ||
| Capacitance | 67±2 pF/m | |
| Impedance | 75±3 Ω | |
| Inner Conductor Resistance | 65.26 Ohms/KM at 20℃ | |
| Return loss | between 5 and 1000MHz | > 22dB |
| Velocity of Propagation | 0.66 | |
| Sparker Test (VAC) | 3 | |
| Operating Temp Range (PVC) | -20 ℃ to 70℃ | |
| RoHS | YES | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 1 | 0.64 | 1.96 |
| 10 | 1.18 | 3.61 |
| 50 | 2.58 | 7.87 |
| 100 | 3.66 | 11.15 |
| 200 | 5.27 | 16.07 |
| 400 | 7.53 | 22.97 |
| 700 | 10.44 | 31.83 |
| 900 | 11.93 | 36.40 |
| 1000 | 12.89 | 39.30 |
| Order Informations: | ||
| Marking | ZION RG59 B/U 95% BC+2x0.50mm2 BC CLASS 5 CE RoHS 70C XXXM MMDDYYYY | |
| Package | 500FT, 1000FT, Plastic / Wooden Spool, Carton | |
| Delivery time | Normally 25 days after received the deposit. | |
| More informations | please contact with us. | |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and ZION.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
|
|
