HANGZHOU ZION COMMUNICATION CO.,LTD Professional Manufacturer of Coaxial Cable, Lan Cable, Fire Resistant Cable and Cable Accessories!
12 Years
| Ask Lasest Price | |
| Brand Name : | ZION OR OEM |
| Certification : | ISO, UL, CE, RoHS |
| Model Number : | RG59 Micro CCTV Coaxial Cable |
| Delivery Time : | Normally 25 days |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 1000KM / Month |

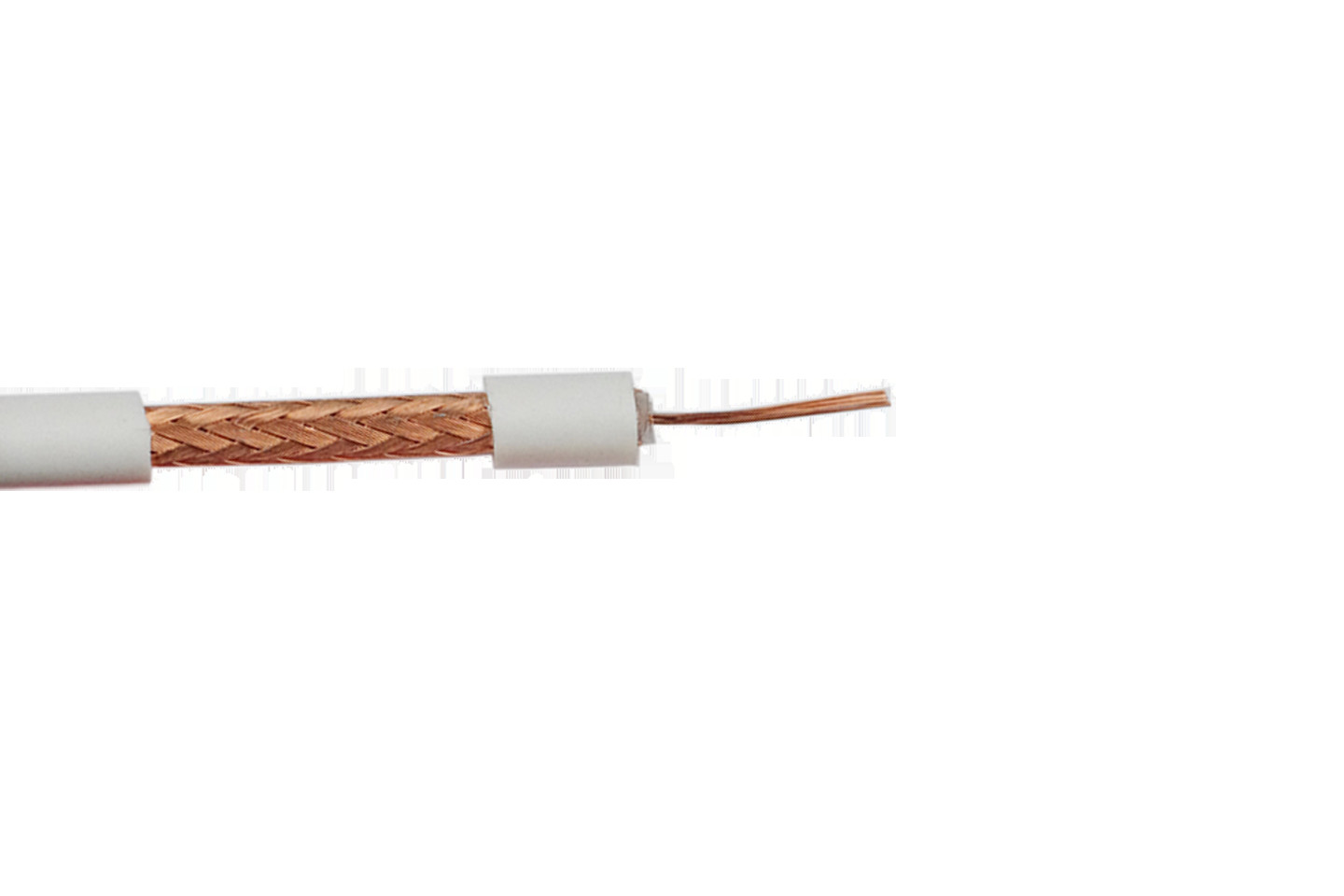

RG59 Micro CCTV Coaxial Cable Stranded Copper Conductor with 95% CCA Braiding
Quick Detail:
Description:
RG59 Micro CCTV Coaxial Cable Stranded BC Solid PE 95% CCA Braiding PVC Jacket
RG59 Micro is a specific type of CCTV coaxial cable , RG59 Micro (Produced by ZION) is perfect
for any type of surveillance camera installation. RG59 Micro has a characteristic impedance of 75 ohms.
ZION using best raw material and best worker to produce RG59 Micro to meet high performance in
practical application. RG59 Micro is packed in 500FT/1000FT plastic/wooden spool, and will be layed on
pallet to protect the spool and easier carry.Because of good managing methods,
ZION’S price of RG59 Micro is not high although our quality is really high.
Applications:
Suitable for Signal Transmission
■ CCTV
■ Local Area Network
■ Digital Video
■ Monitor / VDT Display
■ Security Camera
Specifications:
| RG59 Micro CCTV Coaxial Cable Stranded Bare Copper Solid PE 95% CCA Braiding | ||
| Construction Parameters: | ||
| Inner Conductor | 7×0.0071"/7×0.18mm/7×33AWG | Bare Copper |
| Dielectric | 0.087"/2.2±0.05mm | Solid PE |
| Shield | Nom. 0.106"/2.7mm | Braiding |
| Strand | 0.12mm/34AWG | Copper Clad Aluminum |
| % Coverage | 95 nom. | |
| Jacket | 0.160"/4.05±0.1mm | PVC (Color by your choise) |
| Application | For Use in High Density Cameras | Shorter CCTV |
| Limited Length | Typical run length up to | 375 feet |
| Electrical Characteristics: | ||
| Capacitance | 52±2 pF/m | |
| Impedance | 75±3 Ω | |
| Inner Conductor Resistance | 20.74 Ohms/KM at 20℃ | |
| Return loss | between 5 and 1000MHz | > 17dB |
| Velocity of Propagation | 0.66 | |
| Sparker Test (VAC) | 3 | |
| Operating Temp Range (PVC) | -20 ℃ to 65℃ | |
| RoHS | YES | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation (dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 1.43 | 4.30 |
| 50 | 5.08 | 15.23 |
| 100 | 7.26 | 21.77 |
| 200 | 10.44 | 31.33 |
| 550 | 18.04 | 54.12 |
| 750 | 20.14 | 60.43 |
| 865 | 22.37 | 67.11 |
| 1000 | 25.90 | 77.69 |
| Order Informations: | ||
| Marking | ZION RG59 Micro CCTV Cable Stranded BC SPE 95% CCA COAXIAL CABLE XXXXXX FT/M | |
| Package | 500FT, 1000FT, Plastic / Wooden Spool, Carton | |
| Delivery time | Normally 25 days after received the deposit. | |
| More informations | please contact with us. | |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and KINGTONE.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
|
|
