FPLR-CL2R Fire Alarm Cable 14 AWG 4 Cores Solid Bare Copper Conductor for Monitors

HANGZHOU ZION COMMUNICATION CO.,LTD
Contact Now
    Buy cheap FPLR-CL2R Fire Alarm Cable 14 AWG 4 Cores Solid Bare Copper Conductor for Monitors from wholesalers

    Buy cheap FPLR-CL2R Fire Alarm Cable 14 AWG 4 Cores Solid Bare Copper Conductor for Monitors from wholesalers
    • Buy cheap FPLR-CL2R Fire Alarm Cable 14 AWG 4 Cores Solid Bare Copper Conductor for Monitors from wholesalers
    • Buy cheap FPLR-CL2R Fire Alarm Cable 14 AWG 4 Cores Solid Bare Copper Conductor for Monitors from wholesalers

    FPLR-CL2R Fire Alarm Cable 14 AWG 4 Cores Solid Bare Copper Conductor for Monitors

    Ask Lasest Price
    Brand Name : ZION OR OEM
    Certification : ISO, CE, RoHS, UL
    Model Number : FPLR 14 AWG Shielded & Unshielded
    Delivery Time : Normally 25 days
    Payment Terms : T/T, L/C
    Supply Ability : 1000KM / Month
    • Product Details
    • Company Profile

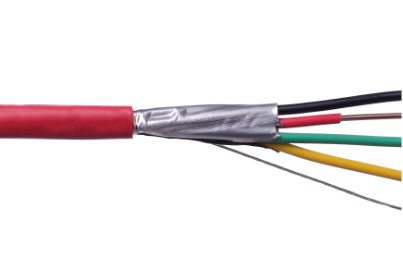

    FPLR-CL2R Fire Alarm Cable 14 AWG 4 Cores Solid Bare Copper Conductor for Monitors


    FPLR-CL2R Fire Alarm Cable 14 AWG 4 Cores Solid Copper Conductor for Monitors


    Quick Details


    • Power Limited Fire Alarm Cable
    • 14 AWG, FPLR-CL2R
    • Solid Bare Copper Conductor
    • Unshielded types: 2C / 4C
    • Shielded types: 2C / 4C
    • Shielded with PET / AL-Foil
    • Tinned Copper Drain Wire
    • FPLR-CL2R RISER PVC Insulation
    • 500FT, 1000FT, Plastic / Wooden Spool, Carton

    Description


    ZION is the leading manufacturer of fire alarm system cables for the fire protection industry. Our innovative product line includes all power-limited cables for use in the NEC Article 760.
    NATIONAL ELECTRIC CODE (NEC) ARTICLE 760: NEC Article 760 covers the installation of wiring and equipment of fire alarm systems,including all circutis controlled and powered by the fire alarm system.
    These systems are defined in the NEC as " The portion of wiring system between the load side of the overcurrent devices or the power-limited supply and the connected equipment of all circuits powered
    and controlled by the fire alarm system."
    Type FPLR-CL2R Power Limited Fire Alarm Riser cable is listed as being suitable for use in a vertical run
    in a shaft or from floor to floor.All FPLR cables are listed as having fire-resistantcharacteristics capable of preventing fire from traveling from floor to floor.Riser cables must pass both UL test 1424
    and the Vertical riser test UL 1666.
    KT1424 Fire Alarm Cable 14 AWG FPLR-CL2R PVC Insulation FPLR-CL2R Riser
    Application
    Indoor for:
    Audio Circuits
    Control Circuits
    Initiating Circuits
    Notification Circuits
    Properties
    Temperature Rating: '-20 to 75℃
    Operating Voltage: 300 Volts max.
    Flame Rating: UL 1666(Riser),C(UL)FT4
    Insulation & Jacket: PVC
    Shielded types
    ConductorsNOM.THICKNESS(MM)Nominal0.D.CapacitanceImpedanceDC Resistance
    NumberSolidInsulationJacketInchpf/ftOhmsOhms/M'
    214 AWG0.010"0.016"0.205"40402.54
    414 AWG0.010"0.016"0.240"40402.54
    Drain Wire18 AWG Solid Tinned-Copper
    Shield0.001" thick Aluminum/Mylar
    Color
    NumberDescription
    2Blk,Red
    4Blk,Red,Ylw,Grn
    Order Informations:
    Print

    ZION KT1424 ×C12 E×××××××(UL) FPLR

    OR CL2R SUN RES(ROHS) ××××FT
    DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9

    Packing500FT, 1000FT, Plastic / Wooden Spool, Carton
