HANGZHOU ZION COMMUNICATION CO.,LTD Professional Manufacturer of Coaxial Cable, Lan Cable, Fire Resistant Cable and Cable Accessories!
12 Years
| Ask Lasest Price | |
| Brand Name : | ZION OR OEM |
| Certification : | CE, RoHS, VDE, UL |
| Model Number : | UTP CAT5E CU PE |
| Delivery Time : | Normally 20 days |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 3000 KM / Month |

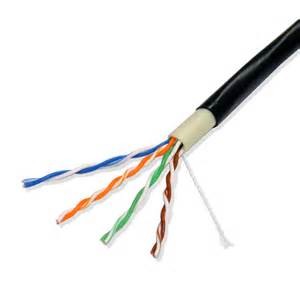

Outdoor UTP CAT5E Network Cable 4 Pairs 24AWG Copper Conductor with PE Jacket
Quick Detail:
Description:
ZION NETCONNECT Enhanced Category 5 (Cat5e) UTP cables exceed TIA/EIA-568-B.2,
ITA/EIA 568-C and ISO/IEC 11801 Class D, IEC61156-5, EN50288 and EN50173
performance requirements, providing extra headroom for a more robust cabling system.
They comply with all of the performance requirements for current and proposed applications
such as Gigabit Ethernet 1000Base-T IEEE802.3ab,100BASE Tx, token ring, 155 Mbps ATM,
100 Mbps, 1.2Gbps, TP-PMD, ISDN, analog (Broadband, Baseband) and digital video and
analog and digital voice (VoIP) and VoIP Camera application.
The cable is available in white, gray, blue and yellow, and packaged as wooden reels,
reelin- box and pull box.
ZION using best raw material and best worker to produce UTP CAT 5E to meet
high performance in practical application.
Because of good managing methods, ZION’S price of UTP CAT 5E is not high
although our quality is really high.
Outdoor UTP CAT5E Network Cable 4 Pairs 24AWG Copper Conductor with PE Jacket | ||||||
| Application&Industry Standard: | ||||||
| Telephony Voice Wiring,10 Base-T,100 Base-T4,UL Subject 444,EIA/TIA568 & ISO/IEC 11801 | ||||||
| 100 Mbps TP-PMD(ANSI X3T9.5),TIA/EIA-568-B.2 , ISO.IEC 11801 Class D | ||||||
| IEC61156-5, IEC60332-1, EN50288, EN50173-1 | ||||||
| Construction | ||||||
| Center conductor | 4x2x0.50 mm Solid Bare Copper | |||||
| Dielectric | 0.92 mm HDPE | |||||
| Outer jacket | 5.30 ± 0.10 mm PE | |||||
| Insulation colors | Blue,White/Blue | |||||
| Orange,White/Orange | ||||||
| Green,White/Green | ||||||
| Brown,White/Brown | ||||||
| Electrical Characteristics at 20 °C | ||||||
| Impedance | 100 ± 15 Ω | |||||
| DC resistance(max) | 8.9 Ω/100m @20℃ | |||||
| Mutual capacitance(max) | 5.6 pF/100m @1kHz | |||||
| Delay Skew | 45 | |||||
| Voltage | 300 Volts AC or DC | |||||
| Mechanical Characteristics at 20 °C | ||||||
| Propagation Delay(max) | 540 ns@10MHZ | |||||
| Min.Bending radius | 4×outside diameter of Jacket | |||||
| Operating Temperature | -20 ℃ to 60℃ | |||||
| Performance Characteristics | ||||||
| Frequency | Attenuation (Max.) | NEXT (Min.) | PS-NEXT | ELFEXT | PS-ELFEXT | Return Loss |
| 1 MHz | 1,9 dB/100m | 66 dB | 63 dB | 64 dB | 61 dB | 20 dB |
| 10 MHz | 6,3 dB/100m | 51 dB | 48 dB | 47 dB | 44 dB | 23 dB |
| 16 MHz | 8,0 dB/100m | 48 dB | 45 dB | 44 dB | 41 dB | 25 dB |
| 20 MHz | 9,9 dB/100m | 46 dB | 43 dB | 42 dB | 39 dB | 25 dB |
| 40 MHz | 12,8 dB/100m | 44 dB | 41 dB | 34 dB | 31 dB | 23 dB |
| 60 MHz | 16,0 dB/100m | 42 dB | 39 dB | 28 dB | 25 dB | 22 dB |
| 100 MHz | 21,0 dB/100m | 36 dB | 33 dB | 25 dB | 22 dB | 21 dB |
| * PVC – Polyvinylchlorid * AWG - American Wire Gauge * AL/PE - Aluminium/Polyethylene | ||||||
| Order Informations: | ||||||
| Marking | ZION KT0255 UTP CAT5E OUTDOOR XXX M/FT | |||||
| Package | 305M/1000FT, Pull Box, Wooden Reel, Pallet | |||||
| Delivery time | Normally 20 days after received the deposit. | |||||
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and ZION.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
|
|
